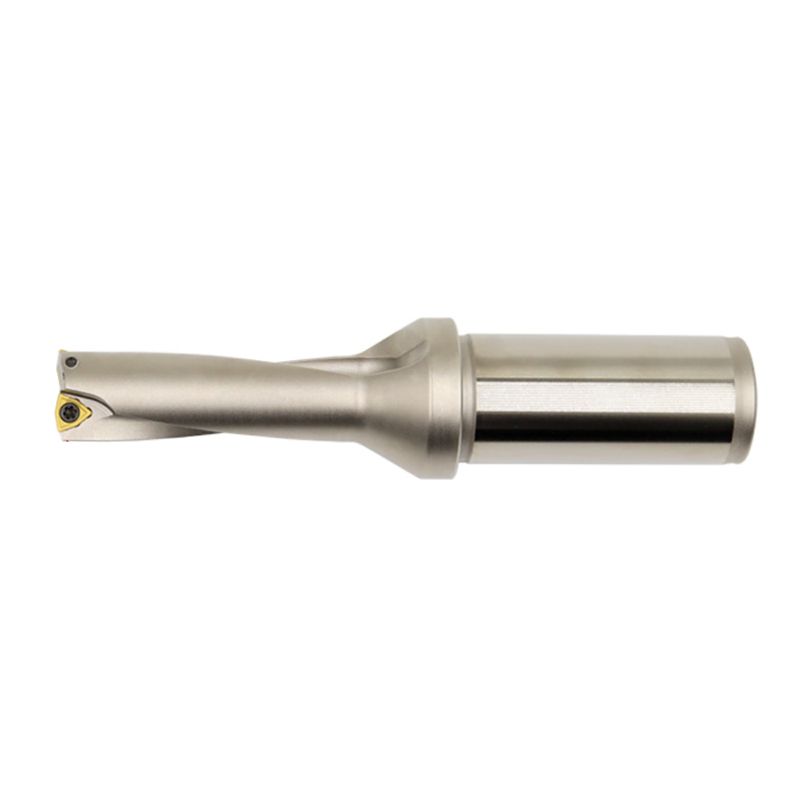

3D WC Drill Bits

The following is the introduction of high quality 3D WC Drill Bits, hoping to help you better understand 3D WC Drill Bits. Welcome new and old customers to continue to cooperate with us to create a better future!

Send Inquiry

Product Description

3D WC Drill Bits Specification

WCblade-3D
model	size				blade	screw	wrench
model	D	Total length L	effective length H	shank diameter d	blade	screw	wrench
WC14-3D-C25	14	121	44	25	WCMT030208	M2.5X6	T8
WC14.5-3D-C25	14.5	122.5	45.5
WC15-3D-C25	15	122	47
WC15.5-3D-C25	15.5	123.5	48.5
WC16-3D-C25	16	125	50
WC16.5-3D-C25	16.5	126.5	51.5
WC17-3D-C25	17	128	53
WC17.5-3D-C25	17.5	129.5	54.5
WC18-3D-C25	18	131	56
WC18.5-3D-C25	18.5	132.5	57.5
WC19-3D-C25	19	132	59
WC19.5-3D-C25	19.5	133.5	60.5
WC20-3D-C25	20	135.5	62		WCMT040208
WC20.5-3D-C25	20.5	137.5	63.5
WC21-3D-C25	21	139	65
WC21.5-3D-C25	21.5	140.5	66.5
WC22-3D-C25	22	142	68
WC22.5-3D-C25	22.5	143.5	69.5
WC23-3D-C25	23	145	71
WC23.5-3D-C25	23.5	146.5	72.5
WC24-3D-C25	24	148	74		WCMT050308	M3.0X8
WC24.5-3D-C25	24.5	149.5	75.5
WC25-3D-C25	25	152	77
WC25-3D-32	25	161	77	32
WC25.5-3D-C32	25.5	162.5	78.5
WC26-3D-C32	26	164	80
WC26.5-3D-C32	26.5	165.5	81.5
WC27-3D-C32	27	167	83
WC27.5-3D-C32	27.5	168.5	84.5
WC28-3D-C32	28	170	86
WC28.5-3D-C32	28.5	171.5	87.5
WC29-3D-C32	29	173	89
WC29.5-3D-C32	29.5	174.5	90.5
WC30-3D-C32	30	176	92
WC30.5-3D-C32	30.5	176.5	93.5
WC31-3D-C32	31	178	95		WCMT06T308	M3.5X10	T15
WC31.5-3D-C32	31.5	178.5	96.5
WC32-3D-C32	32	181	98
WC32.5-3D-C32	32.5	181.5	99.5
WC33-3D-C32	33	184	101
WC33.5-3D-C32	33.5	184.5	102.5
WC34-3D-C32	34	186	104
WC34.5-3D-C32	34.5	186.5	105.5
WC35-3D-C32	35	190	107
WC35.5-3D-C32	35.5	190.5	108.5
WC36-3D-C32	36	193	110
WC36.5-3D-C32	36.5	194.5	111.5
WC37-3D-C32	37	196	113
WC37.5-3D-C32	37.5	198.5	114.5
WC38-3D-C32	38	196.5	116
WC38.5-3D-C32	38.5	198	117.5
WC39-3D-C32	39	197	119
WC39.5-3D-C32	39.5	199.5	120.5
WC40-3D-C32	40	200	122
WC40.5-3D-C32	40.5	200.5	123.5
WC41-3D-C32	41	205	125
WC41.5-3D-C32	41.5	203.5	126.5
WC42-3D-C40	42	223	128	40	WCMT080412	M4.0X10
WC42.5-3D-C40	42.5	224.5	129.5
WC43-3D-C40	43	226	131
WC43.5-3D-C40	43.5	227.5	132.5
WC44-3D-C40	44	229	134
WC44.5-3D-C40	44.5	230.5	135.5
WC45-3D-C40	45	232	137
WC45.5-3D-C40	45.5	233.5	138.5
WC46-3D-C40	46	235	135
WC46.5-3D-C40	46.5	236.5	236.5
WC47-3D-C40	47	238	238
WC47.5-3D-C40	47.5	239.5	239.5
WC48-3D-C40	48	241	241
WC48.5-3D-C40	48.5	242.5	242.5
WC49-3D-C40	49	244	244
WC49.5-3D-C400	49.5	245.5	245.5
WC50-3D-C40	50	247	247
WC50.5-3D-C40	50.5	249	249
WC51-3D-C40	51	250	250
WC52-3D-C40	52	253	253
WC53-3D-C40	53	256	256
WC54-3D-C40	54	259	259
WC55-3D-C40	55	262	262
WC56-3D-C40	56	265	265
WC57-3D-C40	57	268	268
WC58-3D-C340	58	271	271
WC59-3D-C40	59	274	274
WC60-3D-C40	60	277	277
WC65-3D-C40	65	298.5	298.5		WCMT06T308	M3.5X10
WC68-3D-C40	68	308	308
WC70-3D-C40	70	302	302
